Description

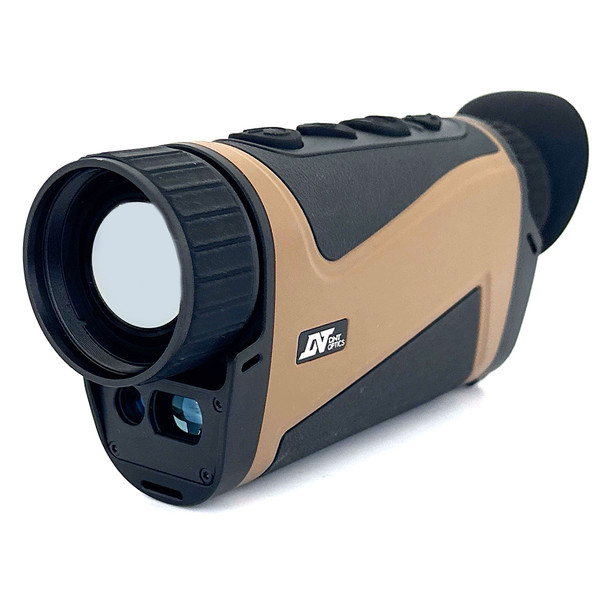

H635R - HOUND Handheld Thermal Monocular with LRF and Ballistics 640x512 Resolution
The DNT Hound H635R is a compact thermal monocular that combines simplicity and performance, at an affordable price. The Hound H635R features an ≤18 mK, 640 × 512, 12 µm pixel pitch thermal sensor paired with a 35 mm Germanium objective lens to deliver increased image resolution with a base magnification of 2.0x while maintaining a useful field of view. A high-resolution 1024 x 768 OLED display, along with DNT’s image processing algorithm, provides great image quality in a wide variety of conditions.
A key feature of the Hound H635R is its integrated laser rangefinder with onboard ballistic calculator. The LRF provides fast, accurate distance measurement, and the ballistic calculator applies that data to generate real-time aiming solutions.
The Hound H635R is powered by a non-proprietary flat-top 18650 rechargeable battery, providing up to approximately 5.0 hours of operating time. The unit can also be powered externally via a USB-C port for extended use. Additional features include onboard photo and video recording with audio, Wi-Fi app compatibility, multiple color palettes, IP67 ingress protection, and a simple, intuitive control layout.
Features
- 640 × 512 Thermal Sensor
- 35mm Germanium Objective Lens
- ≤18 mK NETD Thermal Sensitivity
- 12 µm Pixel Pitch
- 50 Hz Frame Rate
- 1024 x 768 Micro-OLED Display
- 2.0x – 8.0x Magnification
- 12.5° Field of View
- Onboard Laser Rangefinder with Ballistic Calculator
- Onboard Photo and Video Recording with Audio (32 GB)
- DNT Wi-Fi and App Compatibility
- Multiple Color Palettes
- USB-C External Power Capability
- Non-Proprietary Flat-Top 18650 Rechargeable Battery
- 5.0 Hours Operating Time
- Compact, Lightweight Housing
- IP67 Water / Dust Ingress Protection
-
3-Year Transferable Warranty (5 Years Upon Registration)
Items Included
- DNT Hound H635R Thermal Monocular
- 18650 Rechargeable Battery × 2
- Battery Charger
- USB-C Cable
- Wrist Strap
- Lanyard
- Lens Cleaning Cloth
- Carrying Case
- User Manual
Export: The Export of this product without proper licensing is strictly prohibited and falls under ITAR per title 22, CFR, parts 120-130. Please contact US Night Vision Export Dept. to receive further information on how to obtain proper licensing from the U.S. Department of State
