Description

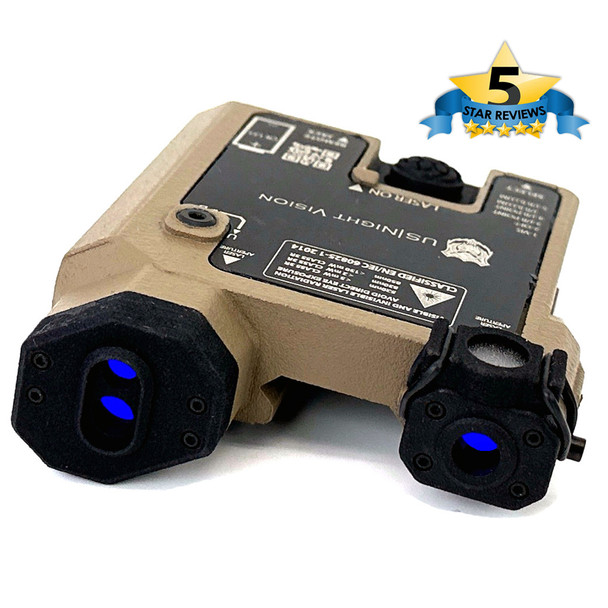

DesignateIR-V™ FDE Three Beam Laser / Green Visible Laser / Infrared Laser / VCSEL IR Illuminator / All New ARISAKA Defense Ambidextrous Fire Button / Arisaka Aluminum Mounting Plate / CQB IR Diffuser Bikini Cover / MADE IN U.S.A
Free UPS Over Night For Delivery Tuesday / Free Surefire M640V Pro Vampire FDE
Made in the USA, the Designate IR-V laser is the smallest and lightest, three beam, tactical rifle laser available today. Built from synthetic nylon, this laser is designed to withstand recoil and will perform in all weather conditions. The Designate IR-V's set-it, forget-it zero allows the user to zero the visible laser once. Then, both laser sights are precisely co-witnessed for accuracy. The laser's small footprint lies below the weapons line of sight and allows the user to effortlessly switch to iron sights. The user controls have been carefully engineered for minimal drag, reliability, and ease of use. The newly added illuminator utilizes VCSEL technology providing illumination with exceptional distance and beam quality. Comparable products cost well over $3000.00. The Designate IR-V offers the end user options that they can afford. Simple user controls and a small footprint are just a few of the reasons to own one. Best of all, US Night Vision has introduced this new laser at an extremely competitive price point. The included CQB Filter diffuses the beam and provides perfect illumination for close up / indoor work where long-range illumination is not needed.
Control The Night. The Infrared Scout Light® Pro sets a new standard in infrared-capable, rifle-mounted WeaponLights. SureFire’s new Low-Profile Mount (LPM) delivers unprecedented versatility, allowing the user to optimize the light’s position relative to the rail. Rugged and reliable, the LPM easily and securely attaches to any MIL-STD-1913 or M-LOK rail. Powered by two 123A lithium batteries, the Infrared Scout Light Pro produces 350 lumens of white light and 120 mW of IR output. Select the proper spectrum for the task at hand by simply rotating the bezel. SureFire’s proprietary TIR lens delivers a far-reaching, high-intensity beam with ample surround light. Activation is simple – just click its push-button tailcap switch. Constructed of lightweight aerospace aluminum with a Mil-Spec hard-anodized finish, and O-ring sealed to keep out the elements, the rugged Infrared Scout Light Pro will endure in combat without sacrificing weapon maneuverability.
Specifications:
- Green Visible Laser/ Infrared Laser / VCSEL Illuminator w/ Diffuser Filter
- Innovative Ambidextrous Fire Button Placement
- Green / Infrared / VCSEL Laser Operation
- MIL-STD Crane Remote Switch Connector
- Remote Pressure Switch (Optional)
- Arisaka Defense 1913 Picatinny Rail Mount
- Arisaka Defense Fire Control Button (Momentary/Constant)
- Easy To Use Selector Switch Vis/Off/IR/IR & Illuminator
- Intuitive “User Only” Activation Light
- Windage / Elevation Adjustable
Size / Dimensions: | (L) 3.8" x (W) 2.9" x (H) .5" |
Weight (w/Battery): | 6.3.oz |
Battery: | (1) CR123 |
Battery Life: | > 5 hours |
Environmental | IP68 |
Warranty | 2 years |
Visible Laser: | Green |
Output Power: | > 5.0 mW Class 3R |
Beam Divergence: | .5 mrad |
Wavelength: | 520 nm |
Range: | > 50 m Daylight |
IR Laser: | Infrared |
Output Power: | > 2.5 mW Class 3R |
Beam Divergence: | .5 mrad |
Wavelength: | 830 nm |
Range: | > 1000 m |
VCSEL Illuminator: | Infrared |
Output Power: | > 130 mW Class 3R |
Beam Divergence: | 3 Degree |
Wavelength: | 850 nm |
Range: | > 300 m |
Export: The Export of this product without proper licensing is strictly prohibited and falls under ITAR per title 22, CFR, parts 120-130. Please contact US Night Vision Export Dept. to receive further information on how to obtain proper licensing from the U.S. Department of State
