DesignateIR™ Dual Beam Green Visible / Infrared Laser / FDE

$995.00 $895.00 (You save $100.00)

Product Information

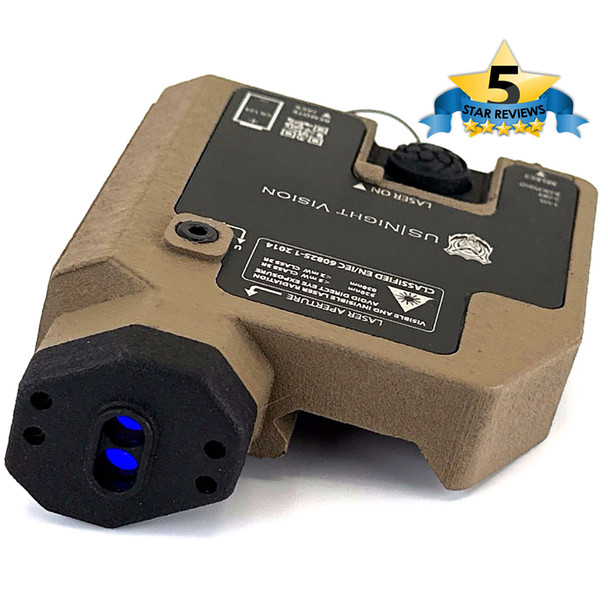

DesignateIR™ FDE Dual Beam Green Visible Laser / Infrared Laser /All New Arisaka Defense Aluminum Mounting Plate & Ambi Fire Button / MADE IN U.S.A.

Introducing the newly redesigned DesignateIR™ Dual Beam Laser from US Night Vision. The DesignateIR™ laser is the smallest, lightest, highest power, lowest profile dual beam tactical aiming laser available on the market.
Made in the USA, the DesignateIR™ features the lowest profile design ever offered in the Laser Industry. When mounted at 12 o’clock on a Picatinny hand guard, the laser projection height over bore is an incredible 1 inch! That’s lower than any standard synthetic Front Sight Post!
Further enhanced with the most recent breakthroughs in laser diode technology, the DesignateIR™ features the most advanced Infrared & Green lasers on the market. The innovative design also provides a center-of-bore fire control button, effectively allowing ambidextrous operation by both right & left-handed operators. The DesignateIR™ is available in Black and is compatible with all Crane certified remote pressure pad systems (Optional)

Add a Surefire M640V PRO FDE Vampire (Visible / Infrared) Custom US Night Vision Logo Light w/ DS00 Tail cap and SR07-D-IT Dual tape switch to run light and laser. FDE Only $595.00

  • Green Visible / Infrared Lasers
  • 3V CR123 Battery Included
  • Innovative Fire Button Placement
  • Dual Beam Laser Operation
  • MIL-STD Crane Remote Switch Connector
  • Remote Pressure Switch (Optional)
  • MIL-STD 1913 Picatinny Rail Mount
  • Fire Control Button (Momentary/Constant)
  • Easy To Use Selector Switch Vis/Off/IR
  • Intuitive “User Only” Activation Light
  • Windage / Elevation Adjustable
Size / Dimensions: (L) 3.8" x (W) 2.8" x (H) .6"
Weight (w/Battery): 5.8.oz
Battery: (1) CR123
Battery Life: > 6 hours
Environmental IP68
Warranty 2 years

Visible Laser: Green
Output Power: > 5.0 mW Class 3R
Beam Divergence: .5 mrad
Wavelength: 520 nm
Range: > 50 m Daylight

IR Laser: Infrared
Output Power: > 2.5 mW Class 3R
Beam Divergence: .5 mrad
Wavelength: 830 nm
Range: > 1000 m
Export: The Export of this product without proper licensing is strictly prohibited and falls under ITAR per title 22, CFR, parts 120-130.
Please contact US Night Vision Export Dept. to receive further information on how to obtain proper licensing from the U.S. Department of State
Current Stock: 1
Width: 6.00
Height: 6.00
Depth: 4.00
SKU: DIRDUALFDE
Warranty: 2-Year
